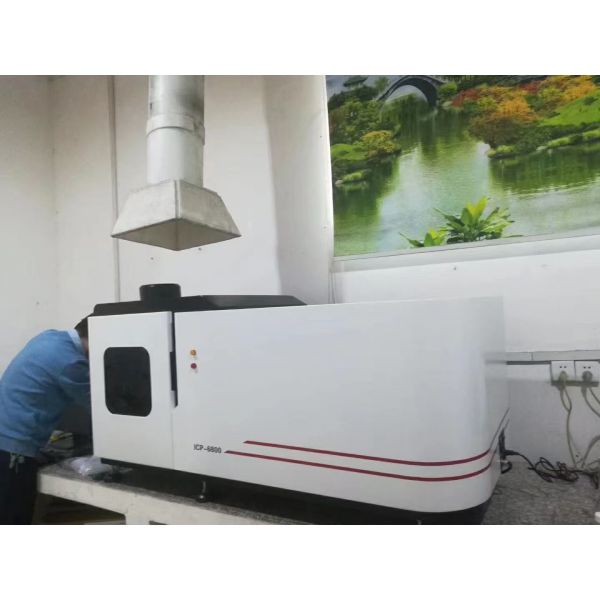

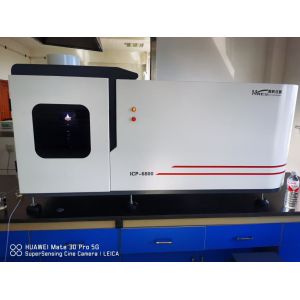

Inductively Coupled Plasma Optical Emission Spectrometer ICP-6800
Main features
Performance stability:The use of all-solid-state rf power supply, with small size, high
efficiency, stable output power, with a variety of protection
functions and many other advantages, the load using fully automatic
matching technology, matching speed, improve the efficiency of the
use of power supply and the stability of the instrument, and make
the whole ignition process simple and convenient. |
Injection automation:Adopting four-channel automatic design, the rotational speed can be
set up according to the test demand to adjust the flow rate,
carrier gas, plasma gas, auxiliary gas are all controlled by
advanced mass flow controller, at the same time can be equipped
with imported high salt nebulizer, imported hydrofluoric nebulizer
and so on to meet the customer's various test needs. |
Precision analysis:The middle step grating prism cross dispersion mode is adopted,
there is no moving optical element, the ultra low stray light
design is combined with the unique optical design, nitrogen
distributed blowing, imported optical elements, intelligent and
accurate automatic wavelength calibration algorithm. |
Quick test:In American thermoelectric CID detector, the 160-1000nm range is
continuously covered, and the intensity integral values of all
analytical spectral lines are read out at one exposure to speed up
the analysis |
Technical parameters
RFPower technical parameter
Circuit type :solid-state RF Power supply, with function of
automatch
Frequercy :27.12MHz±0.05%
Frequency Stablity :<0.1%
Power Output :800W-1500W
Power Output Stability :<0.3%
Escaped RF radiation :30cm away from the instrument, electric
fiekd: E<2Vtm
Sampling System Technical Parameter
Output working coil imer diameter :25mm
Torpue tube:Three concentric, extemal diameter 20mm
Coaxial nebulizer :Outer dameter 6mm
Double barrel atomizing chamber:Outer diameter 34mm
Gas Flow Controls
Plasma Argon Flowmeter :(100-1000)L/h(1.6-16L/min)
Auxiliary Argon Fiowmeter :(100-1000)L/h(0.16-1.6L/min)
Auxiliary Carrier Argon Flowmeter :(100-1000)L/h(0.16-1.6L/min)
Pressune Maintaining Value :(0-0.4MPa)
Cooling Water:Temperature :20-25ºC,Rate of Flow>5L/min,Hydraulic
Pressure>0.1MPa
Certificate
Spectrometer
Optics Czerny-Turner type
Focal length 1000 mm
Grating Ion Beam Etching Holographic Grating, 3600L/mm or 2400L/mm
Reciprocal linear dispersion 0.26nm/mm
Resolution ≤0.007nm(3600 line grating); ≤0.015nm(2400 line grating)
Wavelength range 3600 line grating:(190nm~500) nm; 2400 line
grating:(190nm~800) nm
Minimum pace of stepping motor ≤0.0006 nm
Exit Slit 12μm
Entrance Slit 10μm
Photoelectric Converter Performance
Photomultiplier tube specification :R293/R928
Negative HV on PMT 0-1000V
Stability <0.05%
Overall Performance Wavelength range of scanning:
195nm~500nm(3600L/mm line grating);195nm~800nm(2400L/mm line
grating)
Repeatability: RSD(Relative Standard Deviation)≤1.5%
Stability: RSD(Relative Standard Deviation) ≤2%
